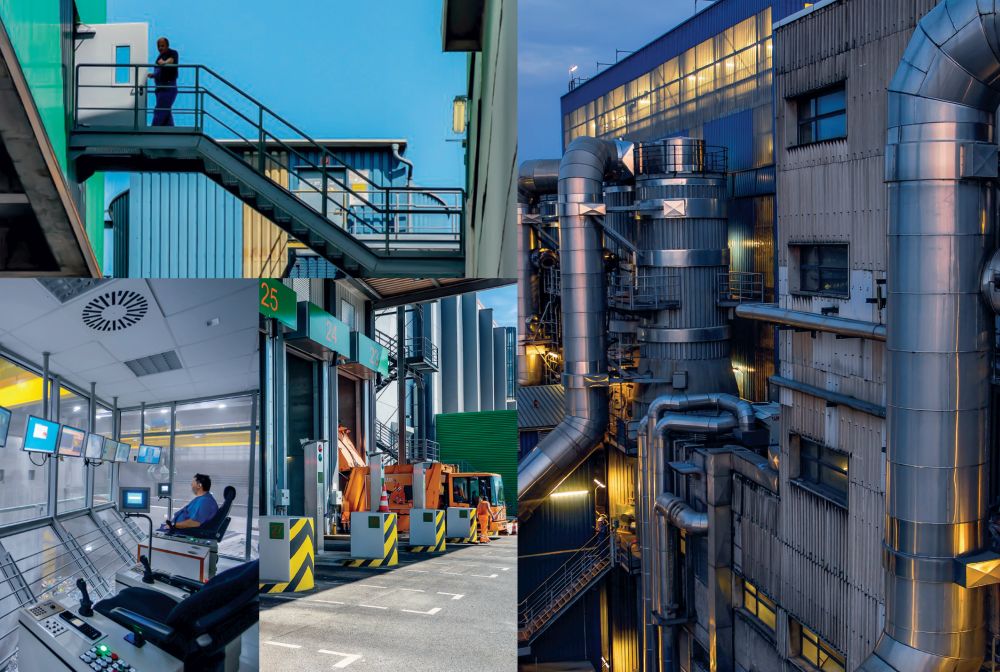

Waste to Energy in Ruhleben
Summary/Description:
Berlin Stadtreinigungsbetriebe BSR, the municipal entity responsible for public sanitation, installed a new combustion line for municipal solid waste (MSW) to replace four of the existing eight combustion lines at the WtE plant Ruhleben.
The new combustion line A at the site Ruhleben was installed while the existing plant was in operation. The integration in the existing plant took place at different locations during the gradual implementation. Thereby the secure disposal of MSW of the German Federal State of Berlin had to be ensured at any time.
The steam produced from the thermal utilization of the MSW is transported via a high-pressure steam pipeline to the nearby Vattenfall power plant. There it is converted into electricity and heat for the district heating network
The commissioned main contractor was Fisia Babcock Environmental GmbH.
Services:
- Quality control in all ranges of performance of the main contractor incl. inspection controls at the producers/manufactures
- Construction supervision and preparation of construction process and progress documentation
- Assistance during the final inspection of the assembly, supervision of cold/hot commissioning and test runs including preparation of the final inspection of assembly at the side of the building owner, implementing and test runs
- Control of interfaces of e.g. interfaces with the existing plant, coordination of these services
- Record and monitoring of guarantee/liability for defects
- Coordination and support of the implementation activities in the fields of process engineering and electrical engineering and process control at the side of the building owner
- Progress monitoring
- Invoice verification
- Verification of supplements and Claim-Management
Technical Data:
- 520,000 Mg/a MSW
- Overall thermal capacity 90 MW
- Caloric value from 6,000 kJ/kg up to 14,000 kJ/kg
- Thermal power output 640,000 MWhth
- Electrical power output 180,000 MWhel
- Quasi-dry flue gas cleaning
- Main steam parameters 68 bar, 460 °C
Client:
BSR Berliner Stadtreinigungsbetriebe
Period:
2010 - 2013
